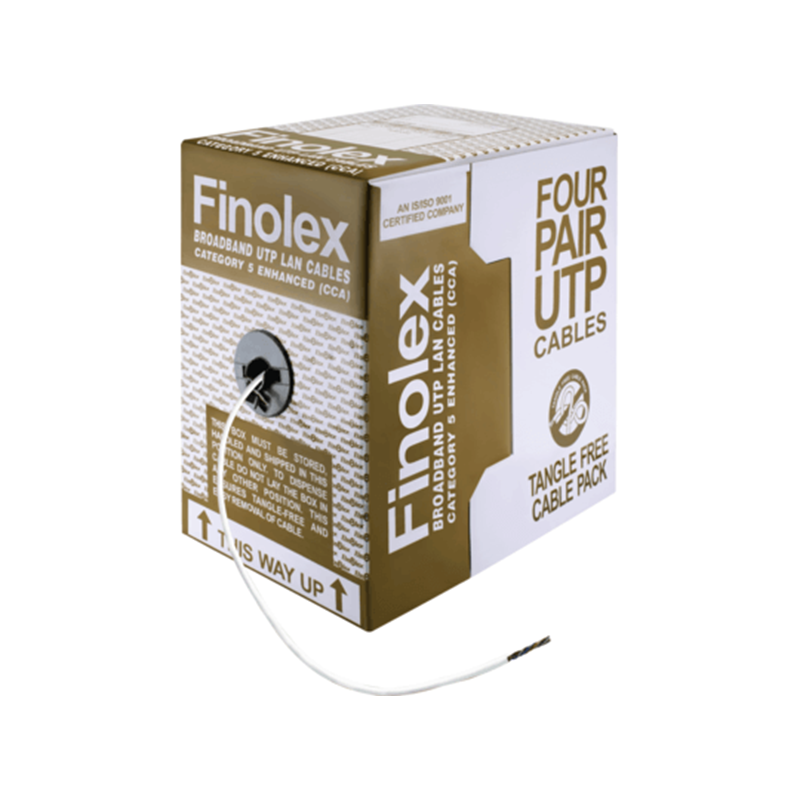

0.5x4 Pair UTP CAT-5 (E) CCA

Asset 1

0.5x4 Pair UTP CAT-5 (E) CCA

LAN CABLE - 24 AWG Copper Clad Aluminium Conductor
High Density Polyethylene Insulation
Fire Retardant PVC Sheath
Sheath Colour Cream
Generally conforming to ANSI/TIA - 568C.2
Temperature Rating - 60°C as per UL 1581/CMX Flame Rating
Electrical Performance (At 100MHz)
Impedance 100 ± 15 Ω
(NVP) Velocity of Propagation 65% min @ 100Mhz. @ 20°C
Delay Skew 45 ηs / 100mtrs. max. @ 1~ 100MHz η.
Propagation Delay 538 ηs / 100mtrs. @ 100 MHz @ 20°C max
DC Resistance 14.0 Ω / 100mtrs @ 20°C max.
